Bending Section Assembly For Olympus CF-HQ290I Colonoscope
► Brief Description

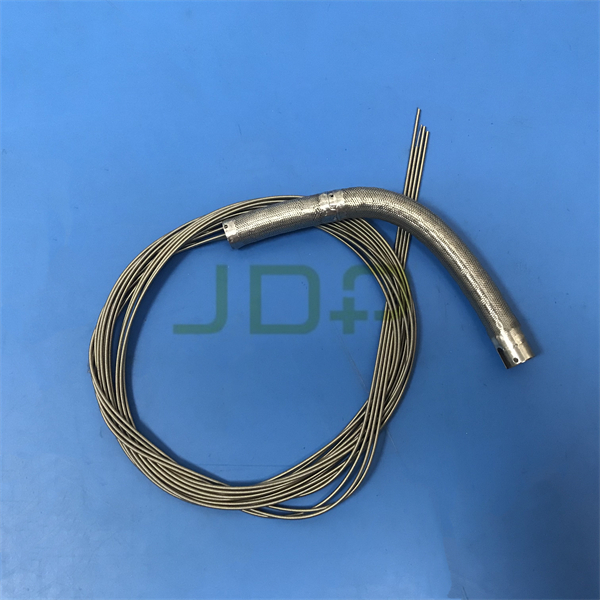

The Bending Section Assembly is a highly precise, flexible mechanical component located at the distal end of the insertion tube on the Olympus CF-HQ290I colonoscope. As a critical structural element, it enables the physician to steer and navigate the scope smoothly through the complex, winding anatomy of the large intestine. Because the CF-HQ290I is a flagship high-definition therapeutic endoscope, its bending section is engineered to be incredibly compact while housing an intricate network of advanced imaging, illumination, and therapeutic channels.
► Features
Multi-Directional Angulation (4-Way Deflection):The primary function of the assembly is to provide smooth 4-way angulation (Up/Down/Left/Right). This allows the endoscopist to maneuver around the sharp bends of the sigmoid colon and the splenic/hepatic flexures with minimal patient discomfort.
Structural Support & Channel Guidance:The internal segment rings act as a protective skeleton. They house and shield vital internal components—such as the high-definition CCD/CMOS video wires, light guide bundles, instrument (biopsy) channel, and air/water feeding tubes—preventing them from kinking or crushing during bending.
Dynamic Flexibility and Shape Retention:Engineered to balance rigidity and flexibility. It provides enough tactile feedback and column strength for the scope to be pushed forward without looping, yet remains flexible enough to retroflex (bend backward) in the rectum for thorough inspection.
► Specification
| Brand | Olympus |
| Model | CF-HQ290I |
| Condition | Brand new |
| Series | Bending Section Assembly |
| Outer Diameter (OD) | Approx. 11.6 mm |
| Instrument Channel ID | 3.7 mm |
| Total Assembly Length | Approx. 107.6 mm |
| Up / Down Angulation | 180° / 180° |
| Right / Left Angulation | 160° / 160° |
| Material | Medical-grade stainless steel |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
►FAQ
What are the most common signs that the bending section assembly needs to be replaced?
The most frequent indicators of a failing or worn bending section include:
Diminished Angulation: The scope cannot reach its maximum bending angles (180° Up/Down, 160° Left/Right).
Play or Slack in the Knobs: The control knobs on the control section feel loose, or there is a delay before the tip actually moves.
Sticky or Heavy Movement: The articulation feels rough, stiff, or requires excessive force to turn.
Physical Damage: Visible tears, stretching, or wrinkling of the outer bending rubber, or a "snakelike" warping of the internal mesh.
