Insertion Tube For Olympus BF-H190 Bronchoscope
► Brief Description

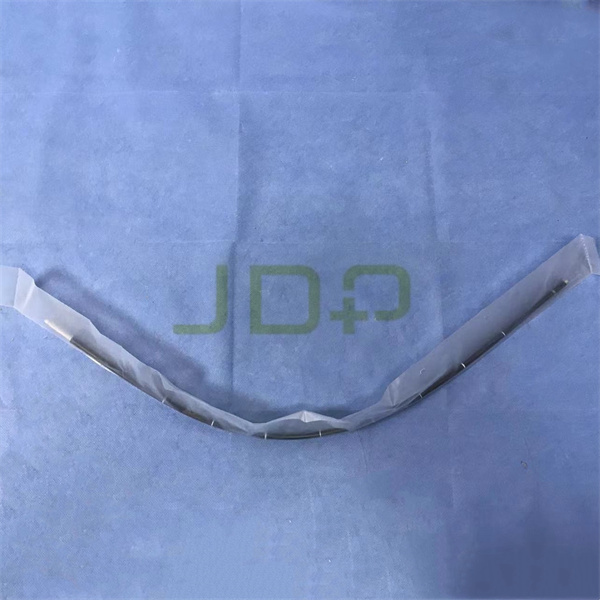

The insertion tube of the Olympus BF-H190 represents a major leap in bronchoscopic design, balancing high-definition imaging capabilities with exceptional maneuverability. It is engineered to navigate the complex and narrow anatomy of the tracheobronchial tree smoothly. By utilizing Olympus's proprietary material technology, the insertion tube offers the perfect blend of flexibility and rigidity, minimizing patient discomfort while maximizing diagnostic precision for the endoscopist.
► Features
Rotary Function (Tube Rotation)
Optimized Flexibility (Insertion Capability)
Versatile Working Channel
Fully Waterproof & Biocompatible Design
► Specification
| Brand | Olympus |
| Model | BF-H190 |
| Condition | Brand new |
| Series | Insertion Tube |
| Distal End Outer Diameter | 5.1 mm |
| Insertion Tube Outer Diameter | 5.5 mm |
| Instrument Channel Inner Diameter | 2.0 mm |
| Working Length | 600 mm |
| Total Length | 870 mm |
| Angulation Range(Up/Down) | 180° / 130° |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► FAQ
What are the most common causes of damage to the BF-H190 insertion tube?
Patient Biting: If a proper bite block is not used during oral bronchoscopy, patient biting can crush the internal components (image wiring, light guides, angulation wires).
Sharp Instrument Stress: Forcing a sharp biopsy forcep or laser fiber through the 2.0 mm channel while the distal tip is highly angulated can puncture the internal channel tube.
Over-bending/Kinking: Improper storage, tight coiling during transportation, or aggressive handling can cause permanent kinks in the internal metal mesh.
Chemical/Heat Damage: Using unapproved, highly corrosive disinfectants or exposing the tube to excessive heat during cleaning will degrade the outer polymer sheath, leading to fluid leaks.
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
