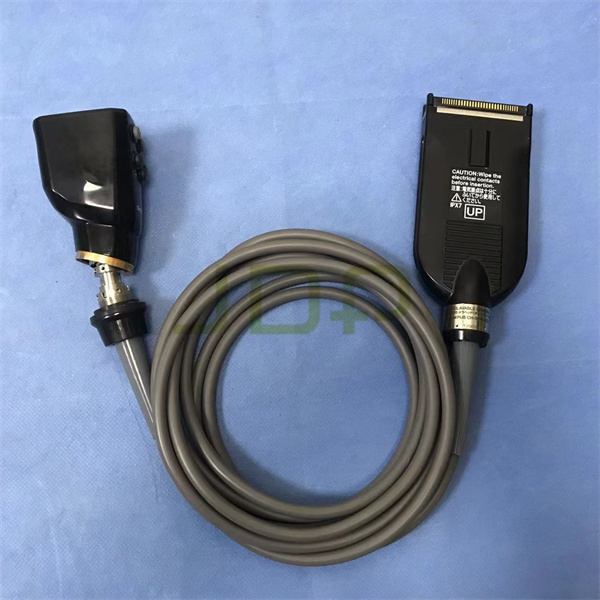

Camera Cable Assembly For Olympus CH-S190-XZ Video Camera Head

► Brief Description

The Camera Cable Assembly for the Olympus VISERA ELITE CH-S190-XZ is a highly specialized, medical-grade multi-core umbilical cable.

Because the CH-S190-XZ is an advanced Full HD 3CCD surgical camera head equipped with motorized Power Zoom and Power Focus micro-engines, its cable is engineered to handle massive data throughput and complex power distribution simultaneously, all while enduring the harsh environments of surgical sterilization.

►Features

• High-Definition Signal Integrity

• Motorized Control Distribution

• Hermetic Thermal & Fluid Isolation

• Ergonomic Flexibility & Torque Resistance

► Specification

► FAQ

What are the most common symptoms of a failing camera cable?

A: Because the cable experiences constant twisting and pulling during surgery, standard signs of wear include:

• Intermittent Video Feed: The image cuts out, freezes, or flickers when you jiggle or flex the cable near the camera head or the processor plug.

• Color Distortion: The image suddenly changes tint (e.g., turns completely magenta, green, or blue), which indicates that one of the internal micro-coaxial RGB lines has severed.

• Processor Error Codes: The OTV-S190 or OTV-S300 display screen shows an "E302" (Camera head communication error) or "Scope Disconnected" alert.

What are the best practices for storing and handling the cable?

A: To maximize the lifespan of the cable:

• Do not over-bend: Never tightly coil or knot the cable. Coil it loosely in large loops (usually greater than 10-15 cm in diameter).

• Disconnect safely: Always pull from the robust metal connector housing rather than pulling directly on the flexible cord when unplugging.

• Storage: Store in a clean, dry, and stress-free environment, preferably on a designated handpiece rest or tray.

► More service

Spare parts for Wolf camera head, such as CCD, cable, cover, sheath/strain relief, etc.

Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.

Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.
