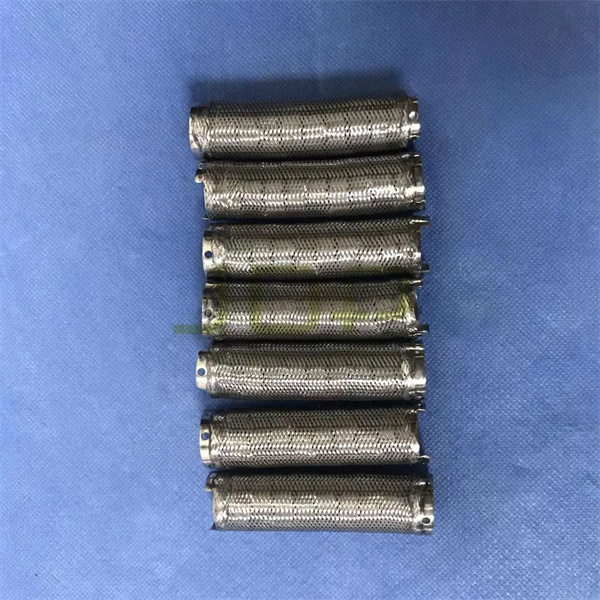

Bending Section Part For Olympus CF-HQ290L Video Colonoscope

► Brief Description

The bending section is a critical, highly flexible articulating component located at the distal end of the Olympus CF-HQ290L EVIS LUCERA ELITE Video Colonoscope. Designed for high durability and precision control, this replacement or assembly part enables gastroenterologists to steer and maneuver the colonoscope smoothly through the complex anatomical contours and acute bends of the lower gastrointestinal tract.

► Features

• Multi-Directional Navigation: Provides wide-angle articulation (180°up/down and 160° right/left), allowing clinicians to perform precise tip deflection to view hidden mucosal surfaces, retroflex behind folds, and navigate tight anatomical flexures.

• Support for Responsive Insertion Technology (RIT): Works in tandem with the colonoscope's Passive Bending (PB) and High Force Transmission (HFT) features, smoothly conforming to natural colon geometry to minimize looping and reduce patient discomfort.

• Accessory Guidance: Maintains structural integrity under tension, ensuring that therapeutic tools (such as biopsy forceps, snares, and injection needles) introduced through the 3.7mm instrument channel exit smoothly regardless of the bending angle.

• Durability & Repairability: Constructed with precision-soldered stainless steel mesh and specialized alloy control wires to prevent slack, maintain calibration standards, and ensure reliable tension transfer during routine diagnostic and therapeutic procedures.

► Specification

►FAQ

What are the common signs that indicate the CF-HQ290L bending section needs repair or replacement?

A: Common indicators include:

• Loss of Angulation Control: Slack, delayed, or restricted movement when turning the control knobs.

• Image Drift: The tip shifts spontaneously without tension on the control wires.

• External Damage: Visible cracks, tears, or pinholes in the outer bending rubber (sheath).

• Fluid Ingress: Internal fogging or moisture leakage detected inside the scope.

• Wire/Mesh Failure: Resistance or grinding sensations during articulation, often caused by worn control wires or a damaged internal mesh framework.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.

► About Us

JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
