Integrated Circuit (Chip) For Karl Storz Image 1 Hub HD 22201020 Camera Control Unit
► Brief Description

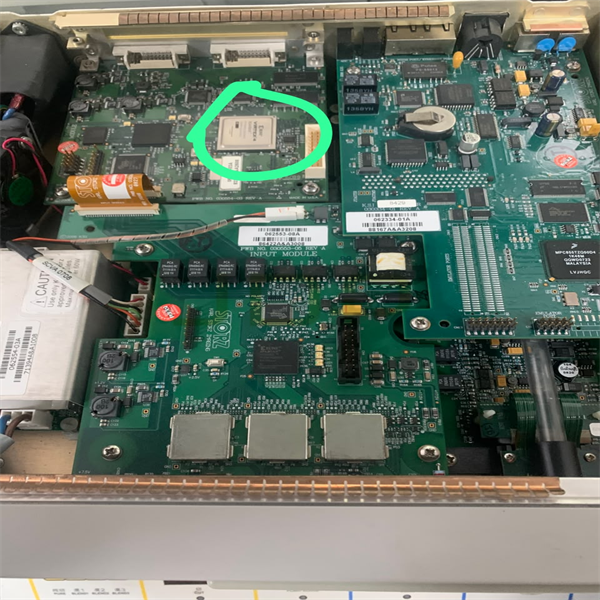

The internal processing electronics are organized into proprietary modular printed circuit board (PCB) assemblies. These modular boards govern the execution of digital logic, video stream rendering, and hardware interfaces.It coordinates signal flow from connected camera heads, processes high-definition video frames, and manages internal system logic.Brand new Integrated Circuit (Chip) for TC200,300,301,201,304 are provided.
►Features
Main Digital Signal Processing (DSP) & System Logic
Video Output Conversion
Interface & Data Routing
Power Regulation & Distribution
► Specification
| Brand | Karl Storz |
| Model | 22201020 |
| Condition | Brand new |
| Series | Integrated Circuit (Chip) |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► FAQ
What role does the Main Board play within the system architecture?
A: The Main Board serves as the central digital processing unit (CPU/DSP hub) of the camera control unit. It coordinates signal flow from connected camera heads, processes high-definition video frames, and manages internal system logic.
► More service
Spare parts for Wolf camera head, such as CCD, cable, cover, sheath/strain relief, etc.
Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.
Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.
