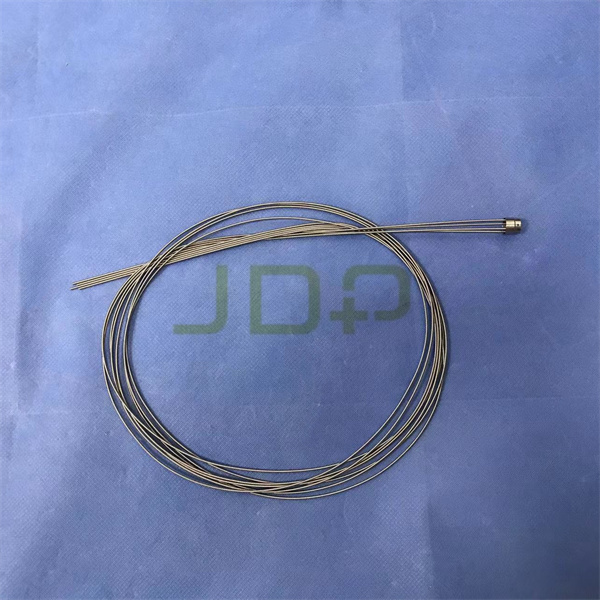

Coil Pipe Assembly For Olympus GIF-H190 Gastroscope
► Brief Description
The Coil Pipe Assembly for the Olympus GIF-H190 gastroscope is a critical internal structural and mechanical component housed within the insertion tube. It acts as the protective and structural backbone for the internal channels, wiring, and light guide bundles, ensuring both mechanical stability and precise articulation during upper gastrointestinal procedures.
► Features
Structural Support & Crush Resistance: The tightly wound metal coil design provides high tensile and compressive strength, preventing the insertion tube from kinking or collapsing when bent through sharp anatomical curves in the upper GI tract.
Protection of Internal Components: It safely encases delicate internal elements—such as the instrument/biopsy channel, light guide bundle, and video cables—shielding them from external mechanical friction and pressure.
Angulation Wire Guidance: The assembly works in tandem with the scope's steering system, providing smooth pathways and tracks for the angulation wires to pull and release, enabling precise distal tip articulation (Up 210°, Down 90°, Left/Right 100°).
Torque Transmission: It ensures optimal 1:1 torque stability, meaning rotational movements applied at the control body are accurately translated down the length of the insertion tube to the distal tip.
► Specification
| Brand | Olympus |
| Model | GIF-H190 |
| Series | Coil Pipe Assembly |
| Condition | Brand new |
| Materials | High-grade Medical Stainless Steel |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
►FAQ
When does the coil pipe assembly need to be replaced?
Replacement is typically necessary during major endoscope overhauls if the scope exhibits:
Kinking or crushing along the insertion tube.
Loss of smooth articulation or stiffness issues caused by internal coil deformation.
Fraying or damage to the channels/wires housed inside, often identified during routine leak testing or repair maintenance.
