Insertion Tube For Fujifilm EG-530NW Video Gastroscope
Insertion Tube For Fujifilm EG-530NW Video Gastroscope
- Detail
- Parameters

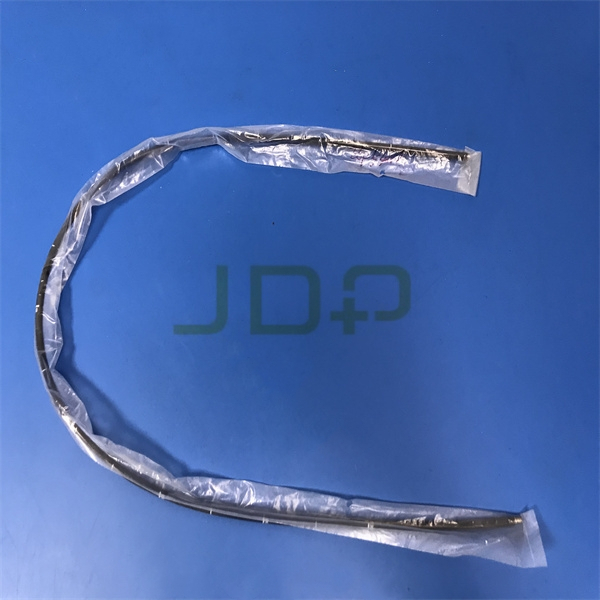

Insert Tube For Fujifilm EG-530NW video gastroscope
► Brief Description
The insertion tube (also known as the flexible portion) is the key component of the endoscope that is inserted into the patient's body.
► Features
Ultrathin Design: The 5.9mm diameter is significantly smaller than standard gastroscopes, facilitating transnasal (through-the-nose) insertion. This is the primary function of the small diameter, greatly improving patient tolerance and reducing the gag reflex.
Flexibility and Torque Transmission: The flexible section is engineered to effectively transmit rotational (torque), pushing, and pulling movements from the control body to the distal tip, allowing for precise steering within the anatomy.
Instrument Channel Access: The 2.0mm channel runs through the entire length of the tube, allowing for the delivery and manipulation of instruments (like biopsy forceps or cytology brushes) and providing suction.
Light and Imaging Components: The tube contains the necessary light guides and wiring to power the CMOS/Super CCD sensor at the distal tip and transmit the high-resolution image data back to the video processor.
Smart Bending Technology:The bending section at the end of the tube provides an exceptionally large 210° up-angulation, which is crucial for maneuvering into retroflexed positions to thoroughly examine the gastric cardia and fundus.
► Specification
| Brand | Fujifilm |
| Model | EG-530NW |
| Condition | Working in Good Condition |
| Series | Insert Tube |
| Outer Diameter | 5.9mm |
| Working Length | 1100mm |
| Total Length | 1400mm |
| Instrument (Working) Channel Diameter | 2.0mm |
| Up | 210° |
| Down | 90° |
| Right | 100° |
| Left | 100° |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
